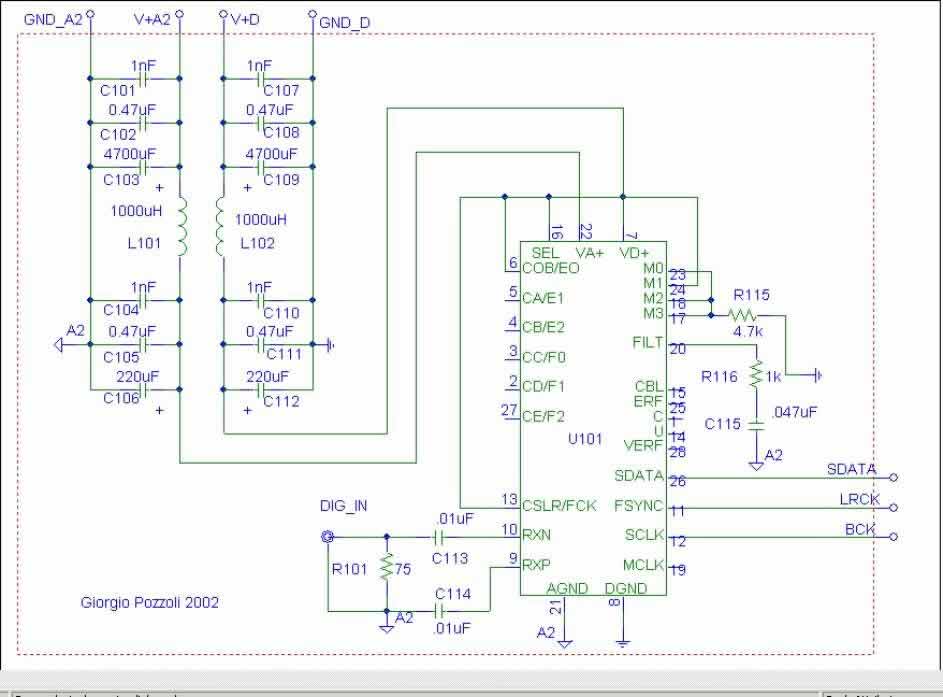

Code |
Value |
Rating (Min) |
Notes |
|
C_C101 |
1nF |
16V |
Ceramic |
|
C_C102 |
0.47uF |
16V |
Polyester |
|
C_C103 |
4700uF |
16V |
Electrolytic |
|
C_C104 |
1nF |
16V |
Ceramic |
|
C_C105 |
0.47uF |
16V |
Polyester |
|
C_C106 |
220uF |
16V |
Electrolytic - ELNA Cerafine |
|
C_C107 |
1nF |
16V |
Ceramic |
|
C_C108 |
0.47uF |
16V |
Polyester |
|
C_C109 |
4700uF |
16V |
Electrolytic |
|
C_C110 |
1nF |
16V |
Ceramic |
|
C_C111 |
0.47uF |
16V |
Polyester |
|
C_C112 |
220uF |
16V |
Electrolytic - ELNA Cerafine |
|
C_C113 |
0.01uF |
16V |
Polyester |
|
C_C114 |
0.01uF |
16V |
Polyester |
|
C_C115 |
0.047uF |
16V |
Polyester |
|
L_L101 |
1000uH |
Rdc=13ohm |
RF Choke |
|
L_L102 |
1000uH |
Rdc=13ohm |
RF Choke |
|
R_R101 |
75 ohm |
1/4W 1% |
Metal film |
|
R_R115 |
4.7Kohm |
1/4W 1% |
Metal film |
|
R_R116 |
1Kohm |
1/4W 1% |
Metal film |
|
VR501 |
2.2K |
1/4W |
Potentiometer |
|
U_U101 |
CS8412 |
Digital Audio Interface Receiver |
|

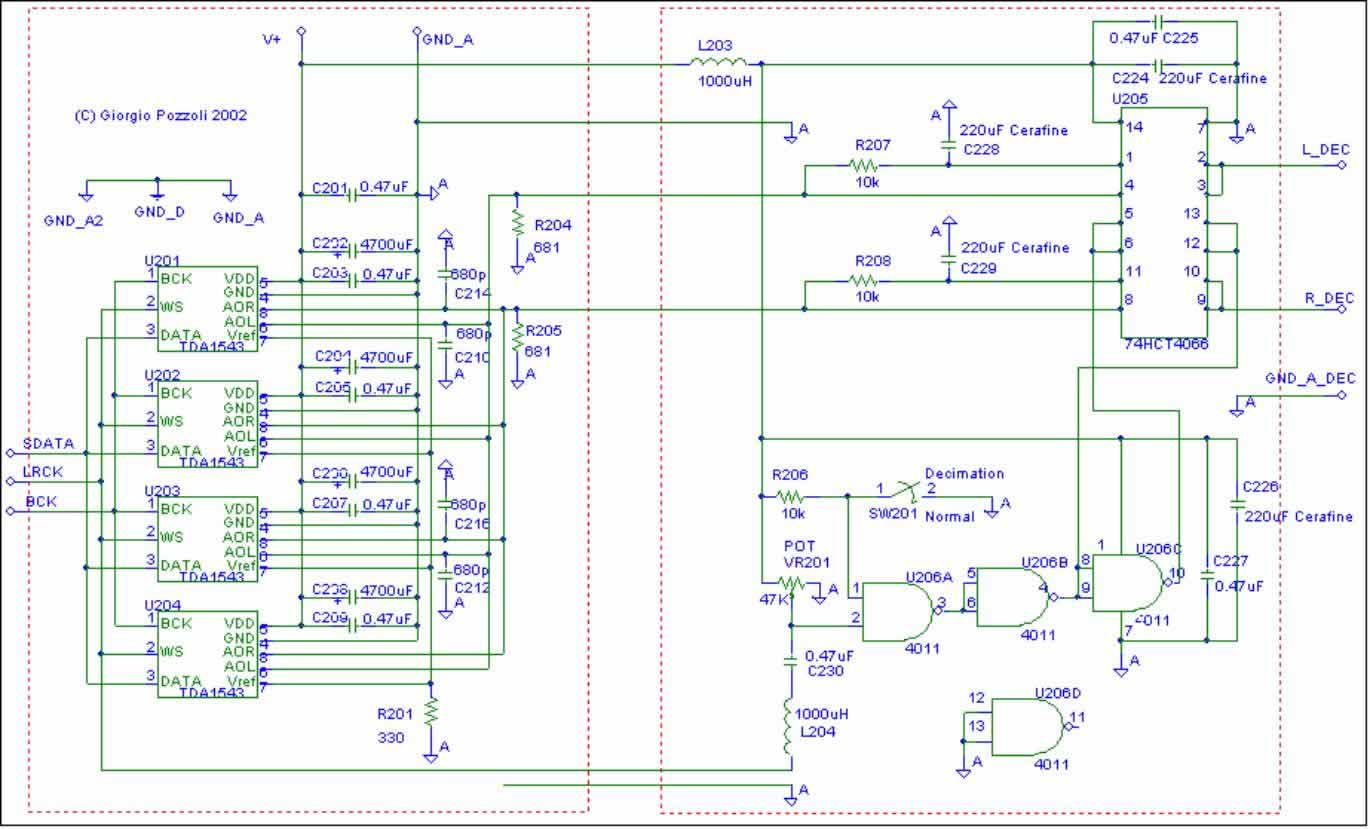

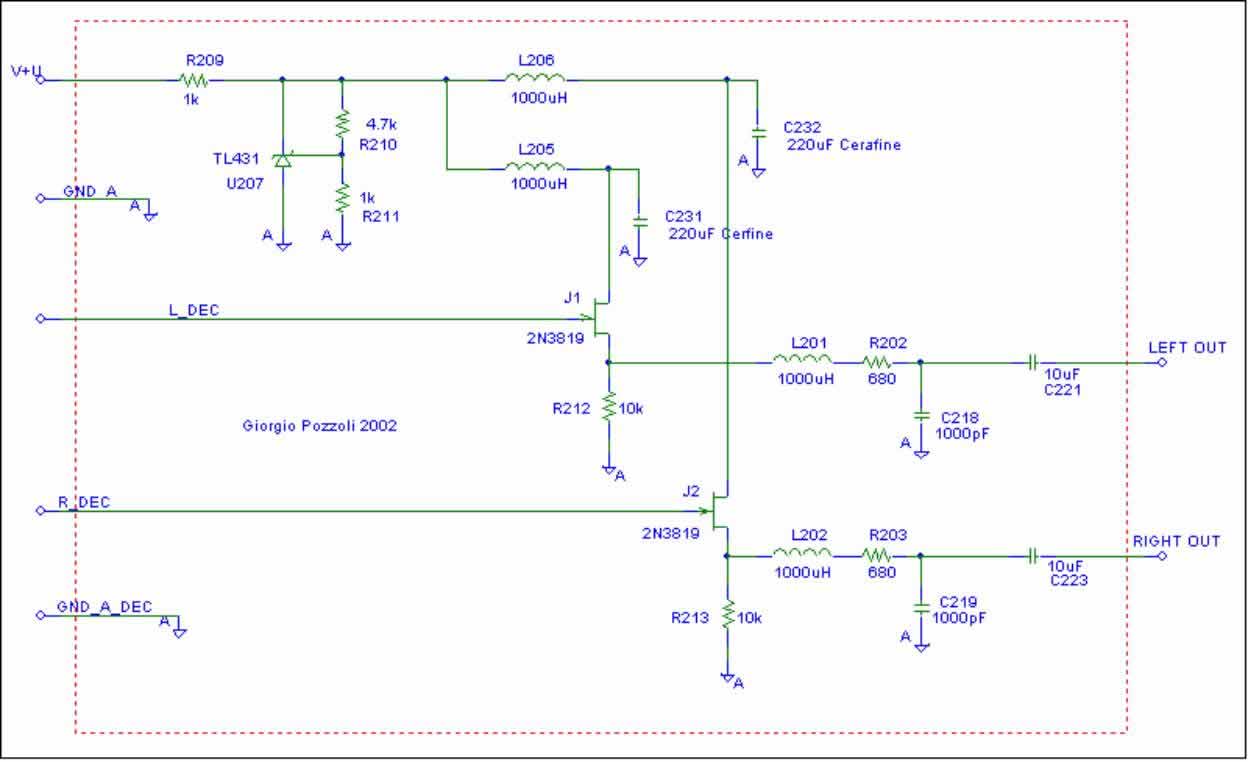

Code |
Value |
Rating (Min) |
Notes |
|
C_C201 |
0.47uF |
16V |
Polyester |
|
C_C202 |
4700uF |
16V |
Electrolytic |
|
C_C203 |
0.47uF |
16V |
Polyester |
|
C_C204 |
4700uF |
16V |
Electrolytic |
|
C_C205 |
0.47uF |
16V |
Polyester |
|
C_C206 |
4700uF |
16V |
Electrolytic |
|
C_C207 |
0.47uF |
16V |
Polyester |
|
C_C208 |
4700uF |
16V |
Electrolytic |
|
C_C209 |
0.47uF |
16V |
Polyester |
|
C_C210 |
680pF |
16V |
Polystyrene |
|
C_C212 |
680pF |
16V |
Polystyrene |
|
C_C214 |
680pF |
16V |
Polystyrene |
|
C_C216 |
680pF |
16V |
Polystyrene |
|
C_C218 |
1000pF |
16V |
Polystyrene |
|
C_C219 |
1000pF |
16V |
Polystyrene |
|
C_C221 |
10uF |
16V |
Polyester - audiophile grade |
|
C_C223 |
10uF |
16V |
Polyester - audiophile grade |
|
C_C224 |
220uF |
16V |
Elna Cerfine |
|
C_C225 |
0.47uF |
16V |
Polyester |
|
C_C226 |
220uF |
16V |
Elna Cerfine |
|
C_C227 |
0.47uF |
16V |
Polyester |
|
C_C228 |
220uF |
16V |
Elna Cerfine |
|
C_C229 |
220uF |
16V |
Elna Cerfine |
|
C_C230 |
0.47uF |
16V |
Polyester |
|
C_C231 |
220uF |
16V |
Elna Cerfine |
|
C_C232 |
220uF |
16V |
Elna Cerfine |
|
L_L201 |
1000uH |
Rdc=13ohm |
RF Choke |
|
L_L202 |
1000uH |
Rdc=13ohm |
RF Choke |
|
L_L203 |
1000uH |
Rdc=13ohm |
RF Choke |
|
L_L204 |
1000uH |
Rdc=13ohm |
RF Choke |
|
L_L205 |
1000uH |
Rdc=13ohm |
RF Choke |
|
L_L206 |
1000uH |
Rdc=13ohm |
RF Choke |
|
R_R201 |
330ohm |
1/4W 1% |
Metal film |
|
R_R202 |
681ohm |
1/4W 1% |
Metal film |
|
R_R203 |
681ohm |
1/4W 1% |
Metal film |
|
R_R204 |
681ohm |
1/2W 1% |
Metal film |
|
R_R205 |
681ohm |
1/2W 1% |
Metal film |
|
R_R206 |
10k |
1/4W 1% |
Metal film |
|
R_R207 |
10k |
1/4W 1% |
Metal film |
|
R_R208 |
10k |
1/4W 1% |
Metal film |
|
R_R209 |
1k |
1/4W 1% |
Metal film |
|
R_R210 |
4.7k |
1/4W 1% |
Metal film |
|
R_R211 |
1k |
1/4W 1% |
Metal film |
|
R_R212 |
10k |
1/4W 1% |
Metal film |
|
R_R213 |
10k |
1/4W 1% |
Metal film |
|
S_SW201 |
1-way 2-positions switch |
||
|
U_U201 |
TDA1543 |
Dual 16 Bit DAC |
|
|
U_U202 |
TDA1543 |
Dual 16 Bit DAC |
|
|
U_U203 |
TDA1543 |
Dual 16 Bit DAC |
|
|
U_U204 |
TDA1543 |
Dual 16 Bit DAC |
|
|
U_U206 |
4011 |
Quad 2-input CMOS NAND gates |
|
|
U_U207 |
TL431 |
Precision programmable reference |
|
|
V_VR201 |
47K |
Trimmer potentiometer |
|

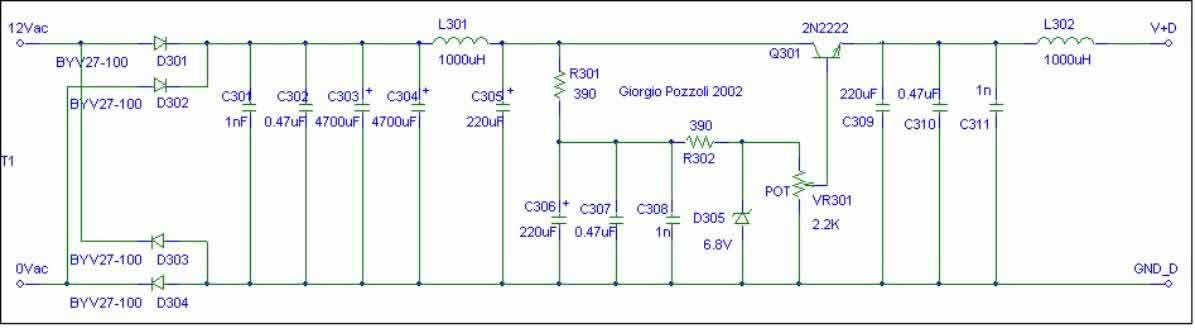

Code |
Value |
Rating (Min) |
Notes |
|
C_C301 |
1nF |
25V |
Ceramic |
|
C_C302 |
0.47uF |
25V |
Polyester |
|
C_C303 |
4700uF |
25V |
Electrolytic |
|
C_C304 |
4700uF |
25V |
Electrolytic |
|
C_C305 |
220uF |
25V |
Electrolytic |
|
C_C306 |
220uF |
25V |
Electrolytic |
|
C_C307 |
0.47uF |
25V |
Polyester |
|
C_C308 |
1n |
25V |
Ceramic |
|
C_C309 |
220uF |
16V |
Electrolytic |
|
C_C310 |
0.47uF |
16V |
Polyester |
|
C_C311 |
1n |
16V |
Ceramic |
|
D_D301 |
BYV27-100 |
Ultra Fast Diode |
|
|
D_D302 |
BYV27-100 |
Ultra Fast Diode |
|
|
D_D303 |
BYV27-100 |
Ultra Fast Diode |
|
|
D_D304 |
BYV27-100 |
Ultra Fast Diode |
|
|
D_D305 |
Zener 6.8V |
Low current |
|
|
L_L301 |
1000uH |
Rdc=13ohm |
RF Choke |
|
L_L302 |
1000uH |
Rdc=13ohm |
RF Choke |
|
Q_Q301 |
2N2222 |
NPN Transistor |
|
|
R_R301 |
390 ohm |
1/4W 1% |
Metal film |
|
R_R302 |
390 ohm |
1/4W 1% |
Metal film |
|
RT_VR301 |
2.2K |
1/4W |
Potentiometer |
|

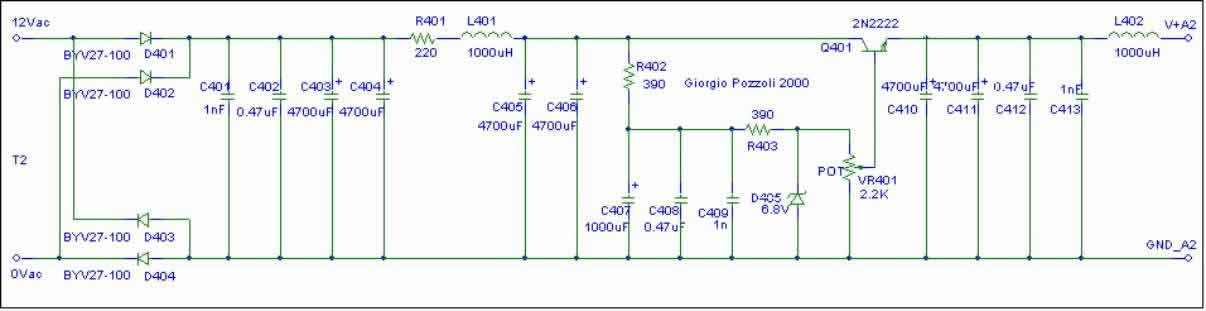

Code |
Value |
Rating (Min) |
Notes |
|
C_C401 |
1nF |
25V |
Ceramic |
|
C_C402 |
0.47uF |
25V |
Polyester |
|
C_C403 |
4700uF |
25V |
Electrolytic |
|
C_C404 |
4700uF |
25V |
Electrolytic |
|
Q_Q401 |
2N2222 |
NPN Transistor |
|
|
C_C405 |
4700uF |
25V |
Electrolytic |
|
C_C406 |
4700uF |
25V |
Electrolytic |
|
C_C407 |
1000uF |
25V |
Electrolytic |
|
C_C408 |
0.47uF |
25V |
Polyester |
|
C_C409 |
1n |
25V |
Ceramic |
|
C_C410 |
4700uF |
16V |
Electrolytic |
|
C_C411 |
4700uF |
16V |
Electrolytic |
|
C_C412 |
0.47uF |
16V |
Polyester |
|
C_C413 |
1nF |
16V |
Ceramic |
|
D_D401 |
BYV27-100 |
Ultra Fast Diode |
|
|
D_D402 |
BYV27-100 |
Ultra Fast Diode |
|
|
D_D403 |
BYV27-100 |
Ultra Fast Diode |
|
|
D_D404 |
BYV27-100 |
Ultra Fast Diode |
|
|
D_D405 |
Zener 6.8V |
Low current |
|
|
L_L401 |
1000uH |
Rdc=13ohm |
RF Choke |
|
L_L402 |
1000uH |
Rdc=13ohm |
RF Choke |
|
R_R401 |
220ohm |
1W 1% |
Metal film |
|
R_R402 |
390Kohm |
1/4w 1% |
Metal film |
|
R_R403 |
390 ohm |
1/4w 1% |
Metal film |
|
VR401 |
2.2Kohm |
1/4w |
Potentiometer (trimmer) |
|

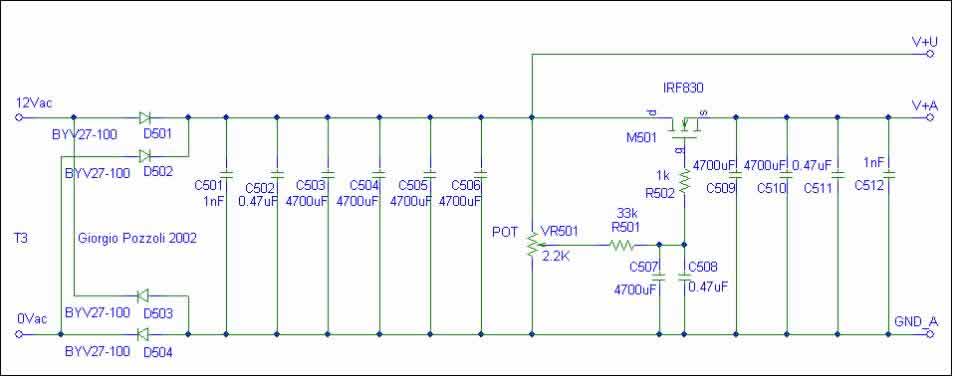

Code |
Value |
Rating (Min) |
Notes |
|
T3 |
30VA |
Primary 0-230V ; Secondary 0-12V |
|
|
C_C501 |
1nF |
25V |
Ceramic |
|
C_C502 |
0.47uF |
25V |
Polyester |
|
C_C503 |
4700uF |
25V |
Electrolytic |
|
C_C504 |
4700uF |
25V |
Electrolytic |
|
C_C505 |
4700uF |
25V |
Electrolytic |
|
C_C506 |
4700uF |
25V |
Electrolytic |
|
C_C507 |
4700uF |
25V |
Electrolytic |
|
C_C508 |
0.47uF |
25V |
Polyester |
|
C_C509 |
4700uF |
16V |
Electrolytic |
|
C_C510 |
4700uF |
16V |
Electrolytic |
|
C_C511 |
0.47uF |
16V |
Polyester |
|
C_C512 |
1nF |
Ceramic |
|
|
R_R501 |
33k |
1/4W 1% |
Metal film |
|
R_R502 |
1k |
1/4W 1% |
Metal film |
|
VR501 |
2.2K |
1/4W |
Potentiometer (trimmer) |
|
Q_M501 |
IRF830 |
Power MOSFET |
|
|
D_D501 |
BYV27-100 |
Ultra Fast Diode |
|
|
D_D502 |
BYV27-100 |
Ultra Fast Diode |
|
|
D_D503 |
BYV27-100 |
Ultra Fast Diode |
|
|
D_D504 |
BYV27-100 |
Ultra Fast Diode |
