[Theory] Crash course on damping factor, and its elusive effects

Parameter: Damping Factor & Bass Alignment & System Frequency Response
Interface: Amplifier with Loudspeaker with room
Price: PRaT & Boom
Author: Mark Wheeler - TNT UK
Published: September, 2023

“How come there is no web address, factory name or email address?” ask Plebs, stage left, perfectly reasonably

“So where does this fit in with the Old Scribe's pursuit of vast active systems or single-ended valves?” demand Plebs Chorus, stage left

Old Scribe's First Foray into Audio Shopping

When trying to choose how to spend a very limited amount of money, as a very Young Scribe, on a very first audio system, many hours were spent poring over catalogues & technical specifications of available gear both within and way beyond their very limited budget. Before the days of easy online dictionaries & encyclopedias, explanations of a whole new language entailed visits to public libraries and asking questions in stores.

In those days, in the developed world, every town boasted a number of competing audio stores, audio & combined TV stores and audio & vinyl record stores for LP's and singles. Department stores, from Woolworths to Harrods, also had “Radio & TV” departments that often sold surprisingly specialised brands of HiFi equipment.

The audio magazines often had a back page advertisers' index where one could check a tick box next to each advertiser name and receive copious amounts of pulped trees extolling the virtues of their wares. There would be white papers and AES preprints alongside glossy brochures of their products. Smaller manufacturers often sent Roneo or Gestetner mimeographed manually typed sheets of data and design philosophy. Among the parameters being measured in catalogues from the manufacturers was amplifier damping factor.

“Damping Factor?” Ask inquisitive plebs, stage left, ”Was this some kind of amplifier moisturiser?”

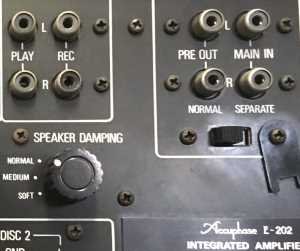

Among this wealth of information was the brochure for the Accuphase E202 amplifier. This looked a cut above the offerings from rivals and its rear panel included a damping control.

Accuphase boasted:
“The E-202 has a Speaker Damping Control which permits choice of three damping factors and induces maximum potential performance from any loudspeaker.
Damping factor with an 8 ohm load becomes more than 50 when this control is set to NORMAL.
Likewise, it is 5 at MEDIUM position, and 1 at SOFT position”.

Damping Factor and Valves

Transistor amplifiers (this is 1973, Class D only means feedforward in this era) achieve their output impedance (hence their damping factor) through the inherent low output impedance (Z) of the output devices (bipolar or MOSFET) and the feedback essential for stability, in traditional circuit design. Hence that Accuphase E202 Damping Control worked by varying global negative feedback.

Valve amplifiers (except for very rare & expensive Output Transformer-Less, or OTL circuits) do not drive the loudspeaker voice coil directly from the output devices. Perhaps Damping Factor could be controlled by choice of winding ratio between primary and secondary? Is this why some people claimed thay valve (tube) amplifiers were superior to transistor amplifiers?

In 1973 these questions were beginning to be asked in the audio press as well is a Young Scribe's schoolboy brain.

Conclusion

The conclusion is obvious: more investigation was needed by a young Old Scribe. In Part II the Young Scribe's experiments will be revealed with the 50 year hindsight and further experiments of an Old Scribe.
