Size is not important

[Italian version here]

Product name: Collybia Mambo - Media HiFi Player
Manufacturer: Collybia - Piraeus, near Athens (Greece) - info@collybia.com
Cost: € 135 for full options version
Reviewer: Richard Varey - TNT New Zealand
Reviewed: July, 2016

Introduction

My curiosity about alternative digital audio was piqued by the latest new product announcement - a shiny silver box that serves music from a stored library or online streaming services. And for a mere $5000! The basic tenet of the sales pitch was «do you really want the hassle of setting up a PC-based or other system, why not just buy a made-for-purpose product?». I wondered the opposite - how can I do it at low cost and easily without hassle?

The Mambo Media HiFi Player is one answer to my question. Essentially, it's a Raspberry Pi B+ credit-card size PC and credit-card size (65 x 55 mm) Mamboberry HiFi DAC+ mounted in a box with an external power supply adaptor, and software installed and configured. For more than 40 years my hi-fi attention has been on electronic components in large metal cases, typically 17" wide, so the idea of a high definition digital file player and Internet radio streamer in a tiny box with a small price needed to be investigated. I approached this product as an audiophile curious to test for myself the claims that truly high definition music playback quality is available simply by combining low-cost off-the-shelf assemblies. I requested a low-cost plug-n-play high quality media player - and thatís what I got - and more.

What you get

Collybia sell the boards and also now do the assembly and audio player software set-up to sell a tailorable plug-and-play media box configuration. This uses the ESS Sabre ES9023p DAC chip and Sigma/Delta PCM 24 bit - 192 kHz architecture with Linux kernel 4.1.16 v7+. In other words, the DAC is high definition and associated with a PC board with open source operating system and music player daemon. In this case, the front-end is the MoOde Audio Player which can play DSD, and the media box can also handle DXD at 352.8 kHz. The design concept was to eliminate jitter, and Collybia claim to have achieved this. I note that this solution comes from a computer firm rather than a home audio producer. Why would you use such a product when there are many very arty and glitzy big boxes offered elsewhere for music serving duties? Firstly, the low cost is a real eye-opener. High definition playback is promised, making this a tempting consideration for audiophiles. The box is very small, allowing the unit to be hidden away if desired. The unit is silent and does not get hot, using only about 4 W and so there is no fan to dirty the electrical signals. The PC is headless requiring no dedicated monitor, and control via a web browser is oh so easy and effective. The 9 V - 1 A linear power supply is external and ultra-low noise.

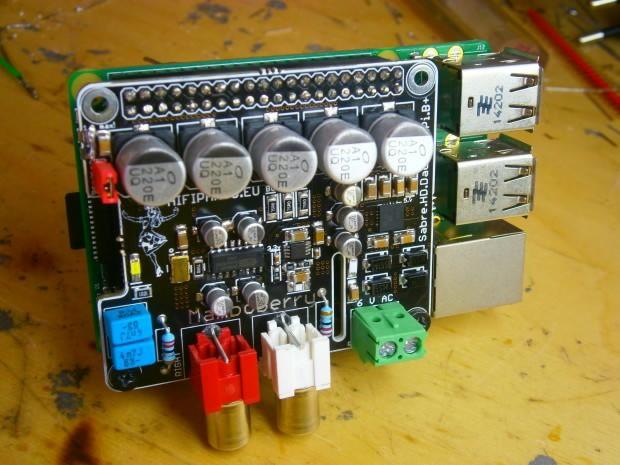

[Inside the Mambo Media HiFi Player]

Inside the tiny Mambo Media HiFi Player

The unit supplied is mounted in a black aluminium box just 110 x 100 x 42 mm (white is also available), with a green LED panel (other colours are available), and MoOde installed (Archphile or RuneAudio are also available). An SD card reader can be included - options are selectable on the website ordering page. Before powering on, I plugged in a USB stick with FLAC files loaded and attached a CAT5 cable network connection. The media box will also operate on a wireless connection, but this is not recommended by Collybia and I didnít try it. A network connection is essential to enable control through a web browser on a PC or tablet. I used the Discovery app on my iPad to get the IP address for the device and found the user interface on the network (see photos) by typing this as the URL in my Google Chrome browser. This gave me control over player on/off, settings, browsing sources (USB, Internet radio), library of files and searching, playlist, volume, and of course play.

[Mambo Media HiFi Player] [Mambo Media HiFi Player]

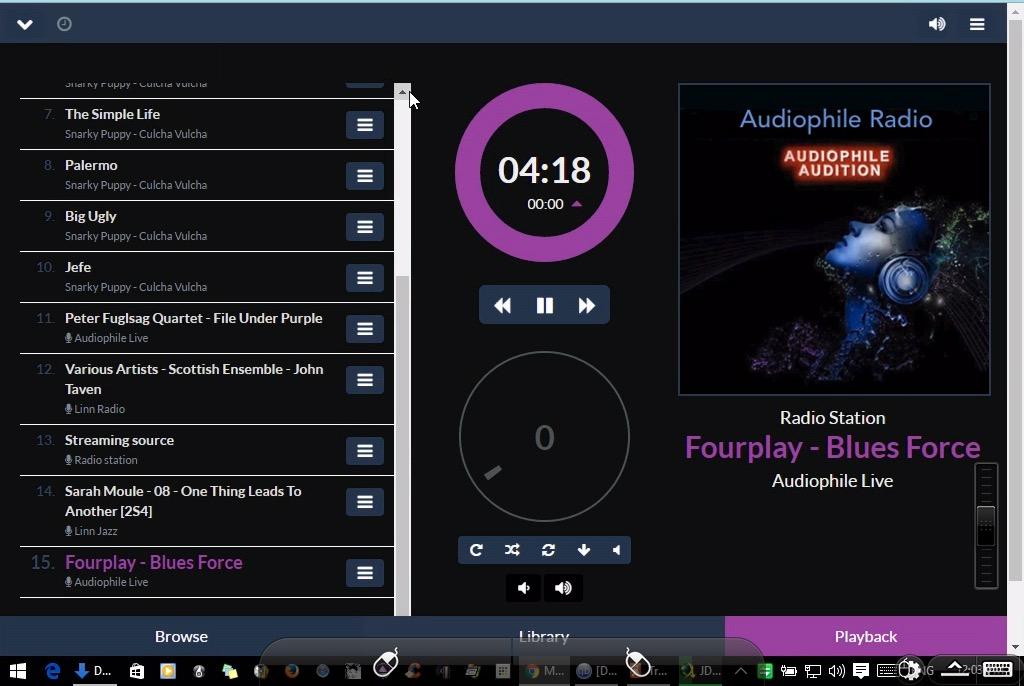

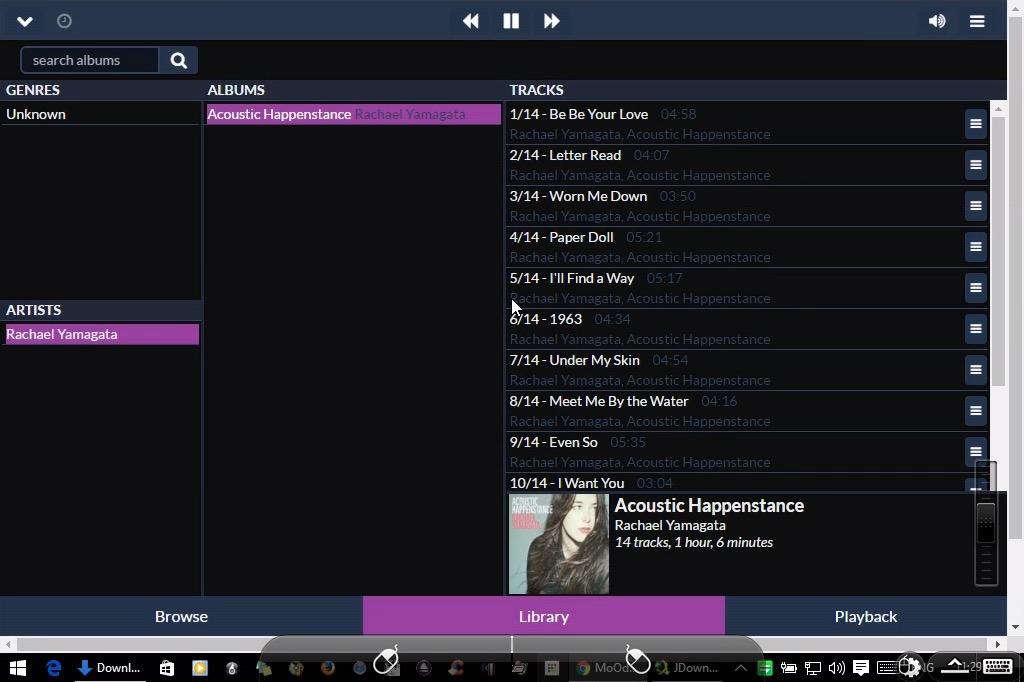

The Mambo Media HiFi Player control interface (click to enlarge)

I have been able to use the unit in three ways:

[Inside the Mambo Media HiFi Player]

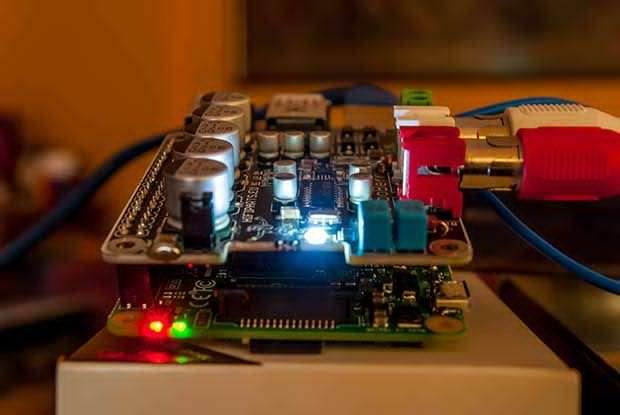

Inside the tiny Mambo Media HiFi Player

A small remote control device is supplied and this was quite effective for start/stop, pause, volume, and moving back and forth among adjacent files. The range seems to be very short (no more than a metre?), so this is not a way to control the unit from the couch, but it does add functions that donít have buttons on the box itself. Clear line of sight with the IR receiver was essential, and one snag is that the IR receiver is not on the same face as the LED display which shows file titles. Control through a web browser which also allows source, network, system, and MPD configuration and interface customisation. Sonic quality of playback of my FLAC files is astonishingly good. I have used a Cambridge DACMagic and SoTM HD interface for several years, and recently also tried a Carat-Peridot USB DAC from StyleAudio (South Korea), and iFi iPurifier and USB Disruptor. The Mambo is crisper, very dynamic, and tonally very engaging. For a couple of weeks now, the others have been switched off, and the Mambo has become my preferred player with the MPD configuration set to SoX very high quality (24 bit - 192 kHz, 175 dB noise rejection, linear phase). Iím loving the sound of my digital albums!

[Inside the Mambo Media HiFi Player]

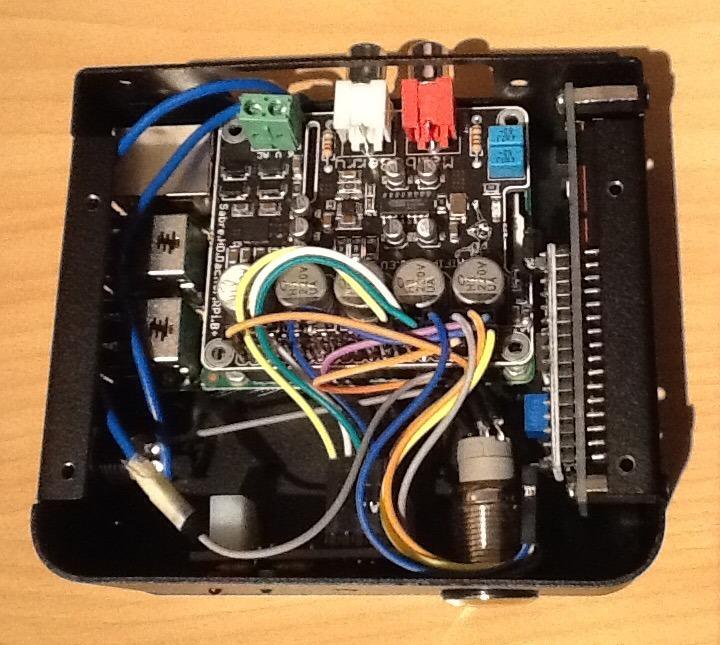

Inside the tiny Mambo Media HiFi Player

The unit I have trialled is a pre-production sample that was sent out for review in enthusiastic response to my request during the testing period, and I realise that it wasnít fully production-ready and that improvements are ongoing, and I understand that some refinements have been made. After some minor frustrations in initially getting it running, with ample support from Emilios Ermidis from Collybia, this has been more than compensated for by the extraordinary sound quality and ease of use (I just have to remember that the software player has to be started and stopped when the unit is powered on and off!). During extended music listening sessions, which have been exciting and delightful, I have easily discerned a rich, detailed and refined presentation, with impressive tonal accuracy. When I glance over at this miniscule unit, I am astounded by the spectacular sonic performance and user interface convenience that comes for the cost of a decent pair of shoes.

[Mambo Media HiFi Player]

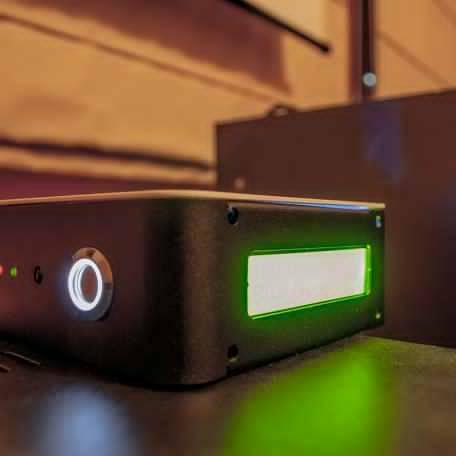

The tiny Mambo Media HiFi Player

Conclusion

I am indeed now convinced that high definition music experience doesnít mean a mega-priced slab of complicated machine sold by persuasive marketing. The history of the development of the Raspberry Pi PC is fascinating and the purpose was to bring personal computing affordably to all schoolchildren. Some enterprising folks have extended the scope with add-ons, such as the Sabre DAC implementation, and this brings high definition audio playback affordably within the grasp of any audiophile. Nice work! My advice is that you check this out before asking the high street retailer to recommend the latest fashion box. My gratitude goes to the team at Collybia in Greece, especially Emilios Ermidis and Vasilis Tounas, for sending the sample and for tirelessly answering my stream of queries and suggestions.
