Product(s): ClearLight
Recovery turntable, Rega RB900 arm, Einstein TU3 cartridge
Approx.
price: 9,000 $/Euro
Reviewer: Geoff
Husband
Reviewed: November, 2001
In order to understand this review it is essential that you visit the methodology page that outlines how the test was done.
Well here we go - the
first of the turntable tests, and thanks go to Werner for putting me
onto the track of the Clearlight...
In this case we returned from
a day out to find the Clearlight left balanced on the top of my front
steps (right on the main road) in the rain. One day I'll do an
editorial rant on the "joys" of using various delivery
firms.
Luckily no damage was done so I proceeded to unwrap the beast. As you'd expect it was in 'kit' form for delivery, but with no instructions. Despite this I had the thing up and running within half an hour which says an awful lot about its user friendliness - no scrabbling under a turntable balanced between two coffee tables for the Clearlight - in fact LP12 owners will wonder what to do with their spare time...
The Clearlight came as a complete package including a rewired ("Incognito" copper) Rega RB900 arm and an Einstein MC cartridge - one of those EMT derivatives that turn so many people on... This a combination costing £6000, a little more than the Orbe/SME IV/Dynavctor DRT-1 that was my ultimate reference.
The table eschews a subchassis for a split plinth design. In this there are two plinths, one on top of the other, separated by "blobs" of some compliant substance such as sorbothane. To the top plinth is attached the arm, to the bottom the motor and mainbearing. This offers a considerable amount of isolation from vibrations at music frequency though less than a true suspended subchassis, especially when it comes to footfalls and the like.
The main advantages of
such a split plinth, apart from the ease of set-up, is that the
stylus/motor/mainbearing remain relatively static in relationship to
each other. In a sub-chassis table variations in drag of the stylus
with music signals can pull the chassis and therefore the
arm/mainbearing towards the motor.
This can effect timing and bass
performance.* These two plinths are finished in a "black
lacquer" which looks more like a "formica" type finish
rather than true lacquer. As this is a Clearlight no doubt the
plinths are liberally sprinkled with RDC material, Clearlight's own
vibration absorbing "wonderstuff", a hard matrix made of
such diverse elements as rubber and lead...
The mainbearing seems
well made and substantial being a conventional design rather than the
"inverted" type currently in vogue. The bearing itself is a
ceramic ball and it appears that the shaft that it rests on has some
of the RDC material on its tip curved for the ball to sit in. As
you'd expect at the price there is no play in the bearing and a low
level of friction.

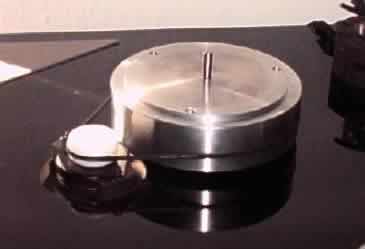

As the plinths are non conducting there is a
strip of copper around the bearing hole giving a contact to earth for
the sub-platter, it looks a bit of an afterthought but seems to do
the job. The sub-platter carries the mainbearing shaft and the motor
drive via a flat belt. It looks a conventional job as you'd see on
any number of quality turntables, though again the motor housing is
made of some "clever" polymer rather than the metal you'd
usually find. The makers of the Clearlight started by offering tweeks
for Thorens, a give-away being the "Thorens" printed on the
drive belt :-)

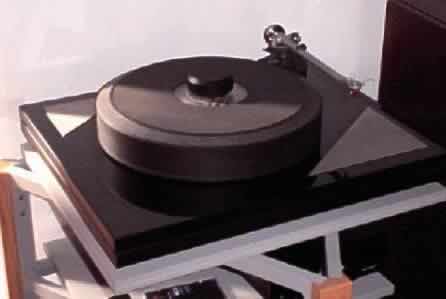

The "piece de
resistance" of the table is the platter. Made from a translucent
acrylic it is rather like the one on the Orbe in that it is very
deep, but it's diameter is over 4 cms more than the record. Inset is
a ring of RDC doing damping duty. The edge is chamfered in such a way
as to make lifting the record easier than in most conventional sized
platters. This sort of size of cast acrylic doesn't come cheap and
the finish is impeccable, running to the company logo in the centre
(sadly hidden).
The centre of the platter has a ring of
'leathermix' from Garrard and is topped with another mat fitting
neatly in a recess. The whole assembly just sits on the sub-platter.
A heavy puck is placed on the record to hold it in place and three
adjustable feet do levelling duties. The general effect is very
classy, spoilt only by two triangles of a sort of light grey
leatherette material glued to the plinth - they look tacky and are
supplied with a new turntable for the owner to fit or not as he/she
see's fit. The idea being that they give a place for the puck to be
placed - personally I'd bin them :-)

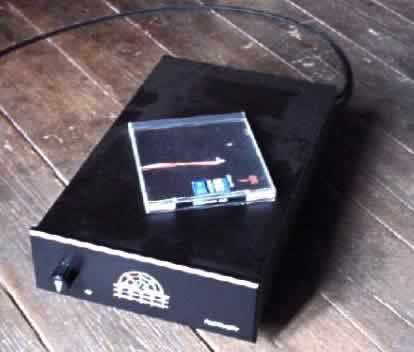

The AC motor power supply is housed offboard in a large case and sports an on-off/33/45 switch - all you need.
Now
to the arm... This is my first encounter with the RB900. This retails
on it's own (with standard wiring) for just over £600. The
RB300 sells for under £200 and to be honest I cannot see for a
moment how the 900 can possibly sell for over three times the price
of it's lesser sibling.
The arm casting appears to be identical,
complete with mould lines and "flash", the only visible
difference being the silver rather than black finish, the former not
in the SME league and personally no more classy than the 300's
finish. The plastic base carrying the antiskate etc is also the
same.
Looking further into the spec the only claimed differences
are higher tolerance bearings, better cable (still cheap though), and
slightly different mount, though still no VTA adjustment, it also
appears that a small bit of machining has been done to chamfer a
couple of the holes in the headshell - RB300 owners could probably do
the same in 5 minutes with a small drill and countersunk bit... Few
would argue that the RB300 is a bargain, but in comparison the RB900
seems a shameless rip-off.
And of course
Clearlight don't leave it alone. First it is rewired with "Incognito"
cable. This is a continuous run of solid core copper cable, from
cartridge tags to phono's. Then they fit the arm into a very special
mounting, again I suspect packed with RDC, which offers a brilliantly
simple VTA adjustment, fully a match for that fitted to the SME V
(and my IV).
And here the rub - the Recovery is available with an
SME arm base for £3400 meaning that the RB900 option (£4800)
is more expensive than the Recovery fitted with an SME IV.
Prior
to the listening tests I considered the SME option easily the better
choice and wondered why Clearlight chose to supply their test
turntable with the RB900 and gone to the length of producing a unique
arm mounting for it. My question was soon to be answered....
The Reference - my own Michell Orbe and SME IV, both arms fitted with "Music Makers".
Lucio has already
waxed lyrical about the Music Maker,
in his case mounted on a Roksan Artemiz tonearm. I'd been running in
both the test cartridges on my Orbe and though they were obviously
doing various hi-fi stuff they weren't really my cup of tea.
In
particular they were a bit quiet and laid back, sounding like £500
worth rather than the giant killer "The Cartridge Man"
claimed - certainly both Dynavectors made them sound small and
restrained. Still they were good enough for test purposes so I duly
set-up the Recovery with the "Music Maker". Both SME and
RB900 were set to 1.48 grms as Len Gregory recommends and I slapped
on two identical copies of "Age of Consent" by Bronski
Beat.
And instantly all that
work in getting two identical set-ups together paid off! The "Music
Maker" just sang on the Recovery. The differences were huge!
First off was a big difference in apparent volume. So great was this
that I immediately swapped over the two GramAmp2
phono stages in case they were the culprits - but no.
This ability
to make a cartridge sound louder is of course a dramatic
demonstration of superior dynamics, turning the level up on the Orbe
enabled me to "match" the volumes in A/B switching but the
Rega just sounded so much more open and lively. Not only did the SME
sound "shut-in" in comparison but also "dirty".
The "haze" present with the SME vanished and the result was
a beautiful open and clear soundstage with bags of depth and
atmosphere. "Tell me Why" is a great piece of production
(and music) with lots of depth and a lovely natural (for Jimmy
Somerville) vocal.
These are not the sort of differences that are
marginal but easily enough to identify the turntable playing "blind"
- I suspect from the next room. After a few A/B switches I just
settled to listen to the whole album on the Recovery combo.
And the rest of stage one just continued in the same vein - the gap between the Orbe and the Recovery being of major proportions. Complex pop productions like "Like a Prayer" showed more layers and detail, "Take Five" grew in size and atmosphere the piano rising and falling in intensity whilst staying firmly anchored in the soundstage.
So good was the result that I had to ring up Len and tell him the good news - he'd obviously "got the vibes" that my early experience with the "Music Maker" was rather "luke warm" and he had said that he considered the IV marginal. He was surprised at how good the RB900 was as he doesn't consider the 300 suitable for the Music Maker, so those upgraded bearings must make a big difference.
So what did Stage 1 prove? That the RB900 and "Music Maker" really do make music and totally outclass the SME IV to the point where I'd actively discourage people from taking this option - I hesitate to blame the Orbe here...
So having wasted the
Orbe/SME when using the Music Makers, time to begin the complex task
of swapping cartridges to optimise the two turntables. The SME was
always designed specifically for high end MC (moving coil) so perhaps
it's relative failure was understandable compared with the much
cheaper RB900.
So out with the big guns and I bolted the DRT-1 and
hooked it through it's matching head amp, a combination costing more
than the Orbe/SME IV! This then went through the GramAmp2 as
before.
Now the Orbe/SME showed it's true colours, huge and
organic and powerful. Again thanks to the two GramAmp2's I could
switch back and forth with the Recovery, making allowances for level.
And yes now it was obvious that two class acts were slugging it out.
The sound was very different - the open, detailed Music Maker on the
Recovery being matched by the massive and full sound of the
Orbe/SME/Dynavector. Both produced that wonderful soundstage and
sense of "being there", the Recovery majoring on the
acoustic and delicacy of a piece the Orbe on the the scale. Different
music pushed me towards different combinations but I couldn't help
thinking that the Orbe was more vague and wooly.
So now to the combination supplied for test - the Recovery/RB900/Einstein.
The people at
Clearlight know their stuff... This was, as with the "Music
Maker", a match made in heaven. It traded some of the
atmospherics and air of the Music Maker for a weightier more rounded
presentation - here matching the Orbe in this respect. Where the Orbe
still held a slight lead was in the big Dynavectors uncanny ability
to produce the shape and substance of a voice, a plucked string or a
tight drum skin.
This is one of the areas where LP's trample CD's,
the former being able somehow to retain the complex relationships of
harmonics in a way that lets you know that a singer has a cold, or
that a sax player's reed is dry.
But that's it folks.
In every other area the Recovery was either the equal or superior of
the Orbe. The Recovery emphasised the slight bloom that the Orbe
possesses, a warm glow that colours the lower mid and makes things
just too cozy. Putting the DRT-1 combination on the Recovery gave it
the shaping ability but retained the clarity - here clearly the Orbe
was manipulating the signal.
Please don't get the idea that the
Recovery was in any way more pushy and forward than the Orbe, in fact
it's tonal balance was remarkably similar. With the reduction in
'bloom' the soundstage opened up further and here I heard a new
reference in my system and room. The bass was as deep as the Orbe,
but tighter, more tuneful and with less overhang. Checking speed
stability with a 3 Khz tone showed the Recovery to be near perfect
whilst the Orbe audibly "wowed" causing the soundstage to
"twist" in your head. With a music signal this sort of
thing isn't audible but may well be another reason for the Recovery's
superior soundstage.
Likewise the Recovery timed Los Lobos' 'Be
Still' noticeably better. However though personally I'd give the
DRT-1 a lead over the Einstein it'd be small, the latter (much
cheaper) managing to be just a bit lighter and more open as a
tradeoff for it's relative lack of the "soul" of a piece. A
different system might push the result the other way though I suspect
that when my new Polaris horns arrive (next week...) the big
Dynavectors lead will increase.
I continued playing swaps, the (cheaper) XX-2 being beaten by a nose by the Einstein, but the brutal truth was that everything sounded good on the Recovery and which cartridge one might prefer would be down to personal preference and of course the depth of the buyers pocket. That said the Music Maker, at just over £500 costs a fraction of the others and in many ways was the pick of the bunch. So good is the combo that I'd strongly advise Clearlight to offer it as an alternative to the much more expensive Einstein, especially as it doesn't need a step-up for valve pre-amps.
So if push comes to
shove I'd rank the results of Stage 2 as - Recovery/DRT-1,
Recovery/Einstein and Music Maker equal, Recovery/XX-2, Orbe/DRT-1,
Orbe/XX-2, Orbe/Music Maker.
It doesn't take a genius to work out
that this is a drubbing for the Orbe/SME and yet my overriding
impression is that in the Recovery we have a "Super Orbe"
it's strengths are much the same as the Orbe as is it's tonal
balance. It's so good that it makes the areas where the Orbe/SME is
in need of work clearly discernable.
The bass bloom and overhang,
though in isolation seeingly minor, can be seen to be a real achilles
heel that muddies bass performance, soundstaging and even midrange
performance. There's no doubt in my mind that the weak link as far as
the Music Maker is concerned is the SME IV - with the moving coils
things aren't so clear cut and I'm loath to say whether it is the arm
or the turntable that gives the Recovery/RB900 the edge. That said
the slightly dodgy speed stability of the Orbe does it no favours and
I begin to wonder whether the fine, bouncy drive belt causes an
oscillation that could be the root of this problem.
And so the frantic mayhem of Stage 2 was replaced with a fortnight of music :-) In the end I stuck with the supplied cartridge and in this case plugged the thing into the Dynavector step-up and thence to the Audion's own valve phono stage which has a (worryingly small) edge over the GramAmp2's.
I had fun :-) An upgrade like this, especially in the front end, is one of those things that unlike a simple change in balance just gets more and more satisfying. I found myself leaving the "Killers" list to trawl through record after record in the traditional orgy of vinyl that makes this job worth while. The Recovery just gave me more soundstage, more detail and more openness wherever I looked. The impeccable timing gave boogie factor in spades - Classical music needs this but rock and jazz lives or dies on it. Take that mistress of timing Chrissy Hynde. I found myself playing all my old Pretenders discs over and ever again, not for some esoteric, "hi-fi-reviewer-digs-deep" reason, but just because I think she's the best thing since Billy Holiday (and boy could she time) and the Recovery really loved her.
And just to show I'm not simply an ageing rocker Madam Butterfly is one of my favourite pieces, and the Recovery spread the players (Callas/Tito Gobbi et al) round the stage, off stage voices being particularly dramatic coming from well wide of the speakers. When the full orchestra opened up it was just so stable and controlled - and until I hear better - beyond reasonable criticism:-)
Here are the marks for the Recovery+modded RB900 (£4800) and Einstein (£1200) against the Orbe (£2000), SME IV (£1200) and DRT-1 (£2500)
Category |
Mark |
Comments |
Beauty tt/arm |
-2/-6 |
The Orbe has the edge/the RB900 looks cheap... |
Fit and Finish tt/arm |
-1/-5 |
Again the Orbe has the edge the RB900 not in the same league. |
Engineering tt/arm |
-1/-3 |
That gorgeous platter almost makes up for a plain and simple plinth |
Compatibility tt/arm |
-2/+5 |
The Recovery uses the SME base or the Rega, the RB900 is happy with both high and low compliance cartridges |
Speed Stability |
+5 |
Almost perfect |
Timing |
+4 |
Fully in LP12 league |
Dynamics |
0 |
A really powerful turntable that retains low level information |
Stage Width |
+3 |
A high standard - beyond the speakers |
Stage Depth |
+4 |
Ditto |
Bass Depth |
0 |
Very deep |
Bass control/speed |
+4 |
Uncoloured, fast and punchy |
Detail retrieval |
+1 |
|
Midrange clarity |
+3 |
Very clear and open helped by lack of bloom |
Treble extension |
0 |
High standard |
Treble Quality |
0 |
Again high quality |
Overall colouration |
+5 |
Nearest to an 'open window' that I've heard (so far) |
Realism |
+2 |
Startling |
'Miss you' factor |
+6 |
I'd buy it if I didn't have to keep a fixed reference |
When I started this
series of tests I hoped and suspected that my Orbe/SME would see off
a variety of more expensive turntables, leaving me feeling smug and
killing that nasty "upgrade bug". I was wrong. The
Recovery/RB900 costs significantly more than the Orbe/SME but is
simply better whilst managing to retain all the aspects of the Orbe
that I love.
This would be the end of the story but for one thing
- the "Music Maker". This £500 cartridge, when fitted
to the Recovery/RB900 beats the more expensive Orbe/SME/DRT-1
combination and doesn't need a £1500 pound step-up to do it.
On
the other hand an Orbe/RB900/Music Maker would undercut an armless
Recovery, it's a combination I'd like to try but time and armboards
leave the question open - food for thought
After reading this I hope it is evident that without the following companies this series of reviews would have been impossible - thanks from me to them :-)
The Cartridge Man - www.thecartridgeman.com
Graham Slee - http://www.gspaudio.co.uk/
Clearlight - www.clearlight-audio.de
AudioNote UK - www.audionote.co.uk
Dynavector Japan - www.dynavector.co.jp
Systems used
|
* Articles on turntable design theory to follow...
© Copyright 2001 Geoff Husband - http://www.tnt-audio.com
[ Home | Staff & Contacts | HiFi Playground | Listening tests | DIY & Tweakings | Music & Books ]
